XACT manufactures mission-ready DAGR cable assemblies and tactical navigation interconnect systems built to support fielded military GPS platforms. Our assemblies are engineered for harsh environments, EMI-sensitive electronics, and expeditionary deployment requirements.
Configurations include shielded audio leads (M55116), RF and coax assemblies, power interface cables, and custom breakout solutions.
All builds are produced under AS9100D quality systems and IPC/WHMA-A-620 Class 3 workmanship standards.
XACT supports replacement builds, modernization updates, and sustainment programs for fielded DAGR and tactical navigation systems. Whether you require exact build-to-print replication or reverse engineering under NDA, our team works within controlled program environments to deliver compliant, mission-ready assemblies.
Low-volume defense orders and lifecycle extensions are supported through our structured Supply Chain Management and production control processes. For damaged or aging fielded hardware, we also provide evaluation and refurbishment through our Cable Repair & Recertification services.
All sustainment builds are manufactured under AS9100D quality systems and can be integrated within broader Military-Grade Cable Assemblies programs when platform-wide interconnect support is required.
** NOT NSN APPROVED **
** NOT NSN APPROVED **
| DESCRIPTION | NSN | XACT EMS PN | ROCKWELL PN |
|---|---|---|---|

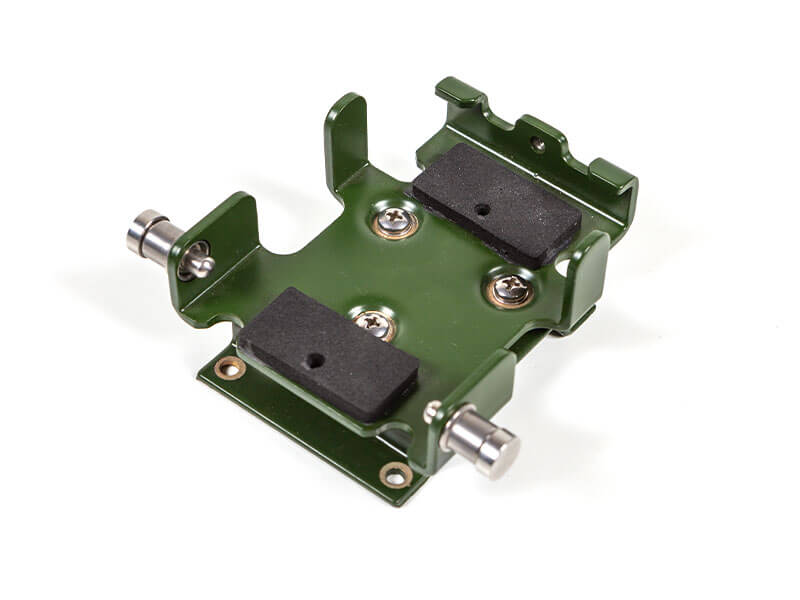

| DAGR Installation Mount Adapter | 5975-01-521-3063 | 1030-INMT-5006 | 987-5006-001 |
| DAGR to RA-1 Cable (5m with SMA connector) | 5995-01-504-1762 | 1030-3600-5M | 987-4640-001 |
| DAGR to RA-1 Cable (10m with SMA connector) | 5995-01-521-4244 | 1030-4800-10M | 987-5016-001 |
| DAGR to RA-2 Cable (10m with TNC connector) | 5995-01-521-2941 | 1030-6400-10M | 987-5015-001 |
| DAGR to SINCGARS Cable | 5995-01-521-3187 | 1030-SINC-5014 | 987-5014-001 |

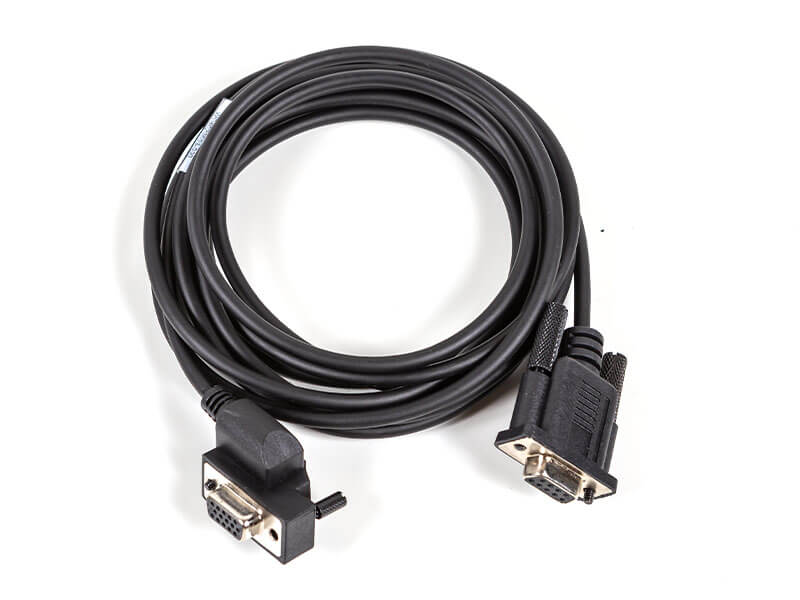

| DAGR to PC Cable | 5995-01-521-3198 | 1030-DAPC-5012 | 987-5012-001 |
| Crypto Keyfill Cable | 5995-01-521-3185 | 1030-CRYP-5180 | 987-5180-001 |
| Adapter Cable PLGR External Power | 6150-01-521-3510 | 1030-EXTP-5020 | 987-5020-001 |

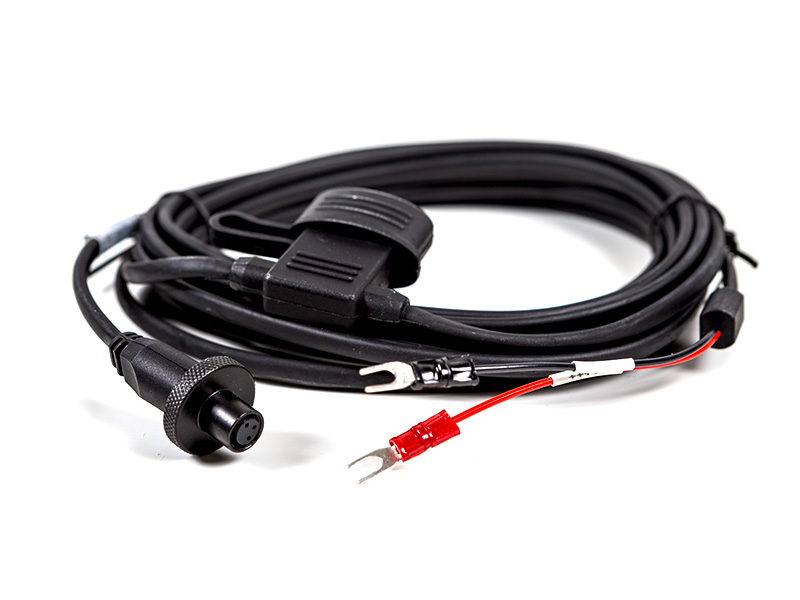

| DAGR External Power Cable, Fused (2m) | 6150-01-521-6755 | 1030-EXTP-0002 | 987-5009-001 |
| DAGR External Power Cable, Fused (5m) | 6150-01-521-6757 | 1030-EXTP-0005 | 987-5019-001 |
| SIAD to PLGR, 6ft | 5995-01-478-4891 | 881335-1 | N/A |
| SIAD to PLGR, 10ft | 5995-01-478-4893 | 881335-2 | N/A |
| SIAD to PLGR, 12ft | 5995-01-478-4898 | 881335-3 | N/A |
| SIAD to PLGR, 30ft | 5995-01-478-4906 | 881335-4 | N/A |
| KGV-72 ETHERNET Cable | 5995-01-604-3171 | 179184-1 | N/A |
| SATCOM DATA AND POWER Cable | 5995-01-598-6028 | 176631-1 | N/A |
| DAGR External Power Cable, RA45N (1m) | 6150-20-007-0312 | 1030-EPCAV-RA45N | N/A |
| DAGR External Power Cable, RA45S (1m) | 5995-20-007-0332 | 1030-EPCAV-RA45S | N/A |
| DAGR Installation Mount Adapter | 5340-01-521-4394 | 1030-INMA-5007 | 987-5007-001 |
| DAGR Cigarette Lighter Power Cable | 6150-01-521-2548 | 1030-CLPC-5008 | 987-5008-001 |
| DAGR to DAGR/PLGR Cable | 5995-01-521-2713 | 1030-DADA-5011 | 987-5011-001 |
| DAGR AC Power Adapter | 6130-01-521-3157 | 1030-ACPA-4975 | 987-4975-001 |
| Cold Weather Battery Pack | 6130-01-530-4652 |
X0429-7050-001 **Not NSN Approved** | 987-7050-001 |
| Spare Prime Power Battery Magazine | 6160-01-521-3064 |
1030-6641-001 **Not NSN Approved** | 987-6641-001 |
| SMA Spinner | 5935-01-534-6963 | X-NUT-01 | 988-9389-001 |
| Lockable Mount | 5975-01-603-7726 | 1030-1NLM-001 | N/A |
| DAGR-PLGR Adapter Cable - External Antenna | 5995-01-521-3120 | 1030-PAEA-5017 | 987-5017-001 |
| DAGR External Power Cable, No Fuse Holder, 45S Clocking, 10ft | 5995-01-598-4604 | 1030-EPCNF-45S-10 | N/A |
| DAGR to PC Cable, 13ft | 5995-01-613-2910 | 1030-DAPC-5012-13 | N/A |
| Remote Antenna Cable SMA – 5m | 6150-01-375-8662 | 426-0141-050 | 426-0141-050 |
| PLGR to PLGR Cable - 1.1m | 6150-01-375-8663 | 426-0141-020 | N/A |
| PLGR to PC Cable – 3.1m | 6150-01-375-8664 | 426-0141-010 | 426-0141-010 |
| SINCGAR – 3.1m | 6150-01-375-8666 | 426-0141-070 | 426-0141-070 |
| PLGR to TNC – 5m | 6150-01-423-5826 | 426-0141-080 | 426-0141-080 |
| PLGR Remote Antenna Cable, SMA, 10m | 6150-01-454-4497 | 426-0141-120 | 426-0141-120 |
| PLGR Remote Antenna Cable, TNC, 10m | 5995-01-545-8815 | 426-0141-130 | 426-0141-130 |
| 90DEG External Power Cable, Fused, 90W Clocking, 5m | 6150-01-572-3870 | 1030-EPC5RA-90W | N/A |
| 90deg External Power Cable, Fused, 45S Clocking, 5m | 6150-01-572-3875 | 1030-EPC5RA-45S | N/A |
| 90deg External Power Cable, 180N Clocking, 8" | 6150-01-594-2415 | 1030-EXTP-8I-RA180N | N/A |
| DAGR External Power Cable, No Fuse Holder, 225N Clocking, 1ft | 6150-01-613-2908 | 1030-EPCNF-225N-01 | N/A |
A key supplier of DAGR accessories, XACT EMS is one of few cable manufacturers in North America to be approved by the Defense Logistics Agency on multiple National Stock Numbers. XACT EMS was also the first company to build the 90° power cables, lockable mounts, and the 100% shielded DAGR power connector for the defence industry. We are proud of our history manufacturing DAGR accessories.
Certified workmanship (AS9100D / IPC). Traceability, serialized inspection, and compliant documentation on eligible builds.
Prototyping, production, and lifecycle services aligned to your program milestones. We’ll help you plan builds, change orders, and NPI ramps.
From engineering support and DFM to materials sourcing, molding/overmolding, panel/box builds, kitting, and deployment.
